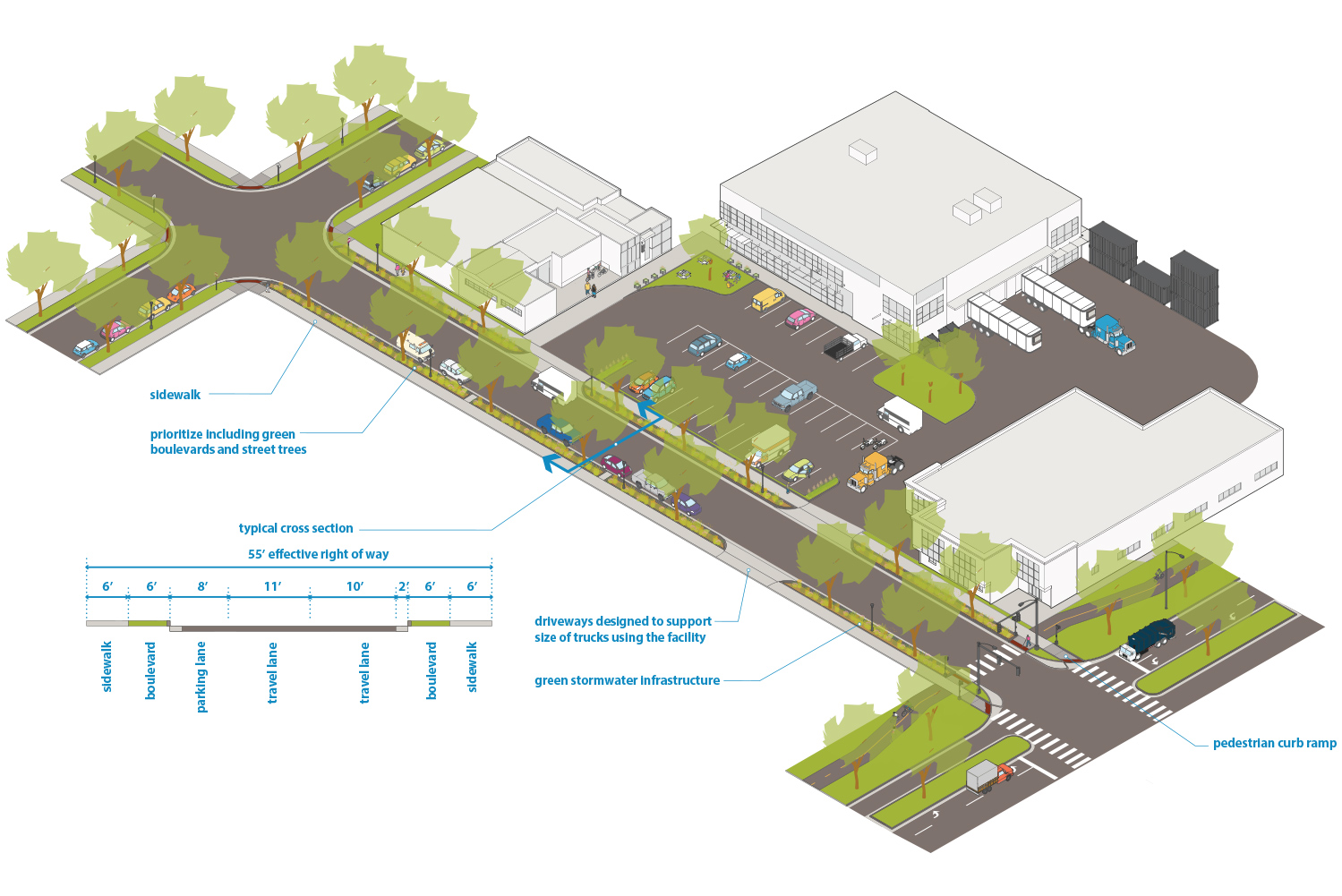

2.5 Production and Processing

Sidewalk

1. 6’ typical pedestrian clear width
2. 2’+ frontage width to any obstructions

See sidewalks guidance for more details.

Boulevard and Furnishing

1. 5’+ typical width, including 8” wide curb
2. Traditionally, many of these streets have little to no greening. However, as Production and Processing streets are reconstructed, wider boulevard and furnishing zones should be used whenever feasible to support features that make the pedestrian environment more attractive and comfortable, support tree health, and maximize green stormwater infrastructure.
3. Every effort should be made to include 5’ of space on both sides of the street to support healthy street trees, green stormwater infrastructure, and space for snow storage. See street trees guidance for more details. If needed, these strategies should be considered, in combination as needed, to support healthy trees on both sides of the street:
   • Eliminating parking from one side of the street;
   • If 2-sided parking, narrow the roadway width below 36’;
   • Narrowing the sidewalk width to 5.5’ or 5’ (a 5’ minimum clear zone should be maintained throughout); or
   • If trying to fit trees in with 4.5’-wide boulevard, work with the Park Board Forrester to ensure that the types of trees planted will have a higher likelihood of survival and less disruption to the sidewalk in narrower boulevard.
   • If tree-supporting boulevards are still not feasible on both sides of the street, narrow or eliminate the boulevard from one side of the street to make enough space on at least one side of the street. Greening should still be used in the narrowed boulevard if possible.

See boulevards and furnishings guidance for more details.

Bikeway

Not typically on the bikeway network.

Transit

Transit service is not typically provided.

Freight

Not typically on the Truck Route Network, but large trucks and commercial vehicles are frequent and should be designed for.

Roadway

1. The roadway typically includes 2-way traffic and should be limited to one travel lane in each direction.
2. Standard roadway widths include:
   • 36’ with parking on both sides, including 2’ gutter. On streets that are only 1 block long or have infrequent on-street truck parking, consider 32’-34’.
   • 31’ with parking on 1 side, including 2’ gutter
   • 24’ with no parking, including 2’ gutter
3. The amount of motor vehicle parking should typically be right sized to target greater than 60% occupancy to reduce speeding and maximize greening and green stormwater infrastructure.
4. Lane markings should not typically be included; users negotiate in a shared space.

Design speed

20 mph

See design speed guidance for more detail.

Design vehicle

Generally WB-40.

See design and control vehicles guidance for more details.

Control vehicle

Most commonly WB-62, but can also be Aerial Fire Truck Mid Mount 100 depending on intersecting street and context.

See design and control vehicles guidance for more details.

Motor Vehicle Property Access

New driveways should be limited to locations without alley or cross street access. Wide or multiple access points should be narrowed or consolidated were feasible while balancing needs for large truck access.

See driveways guidance for more details.

Intersection Traffic Control

Stop control, yield control, or signal control

Intersection details

Consider curb extensions, but they may not be appropriate given the frequency of large trucks.
